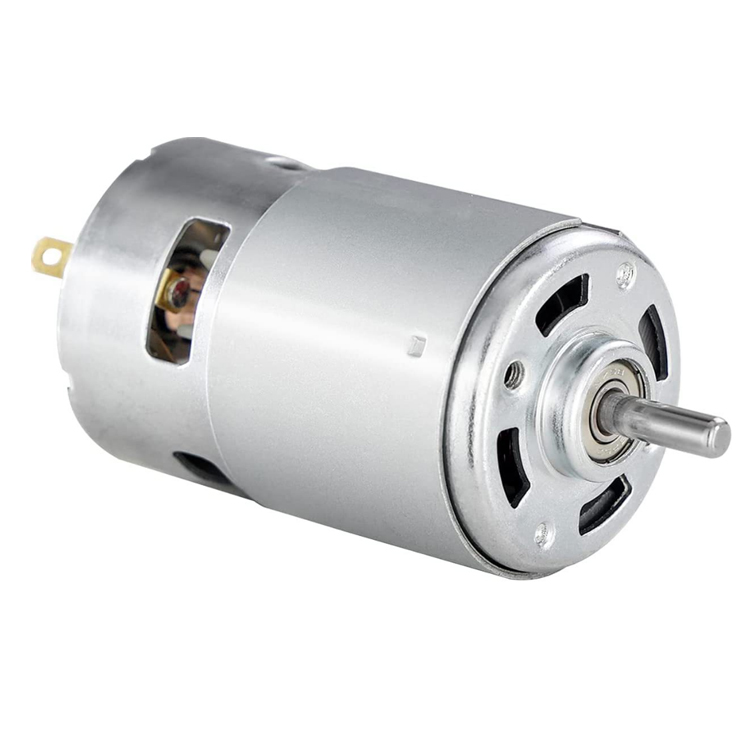

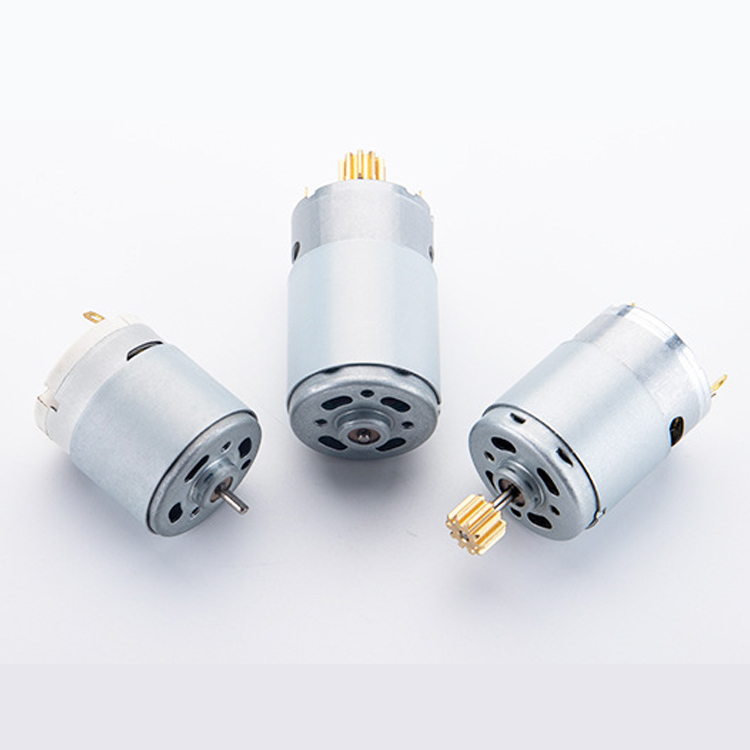

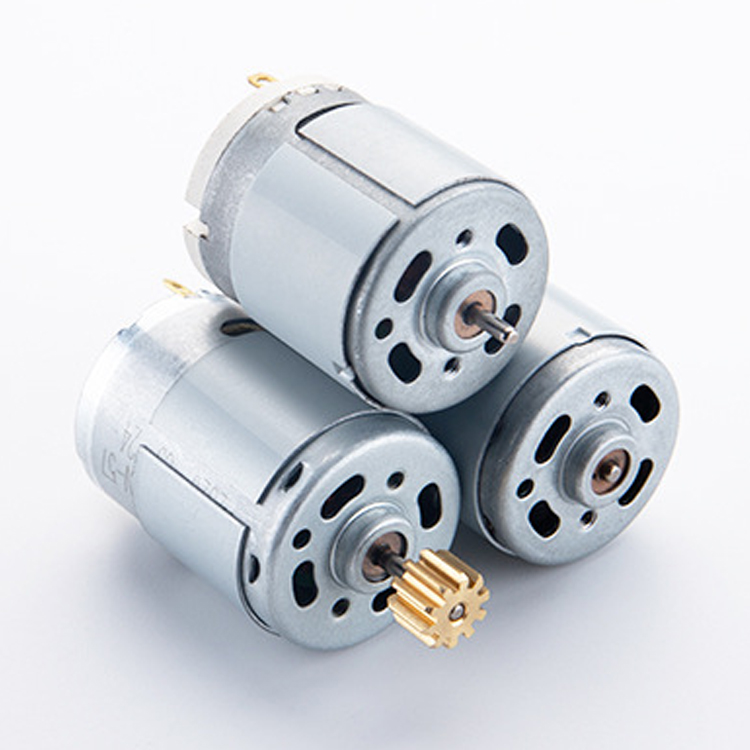

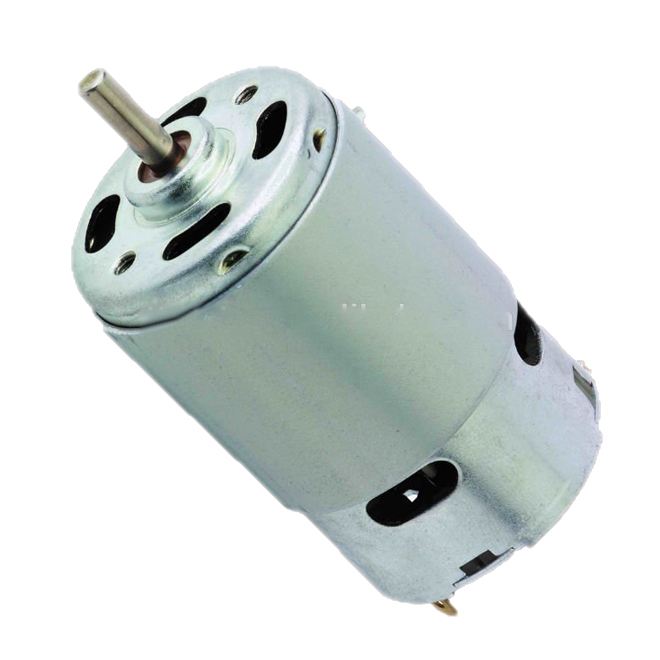

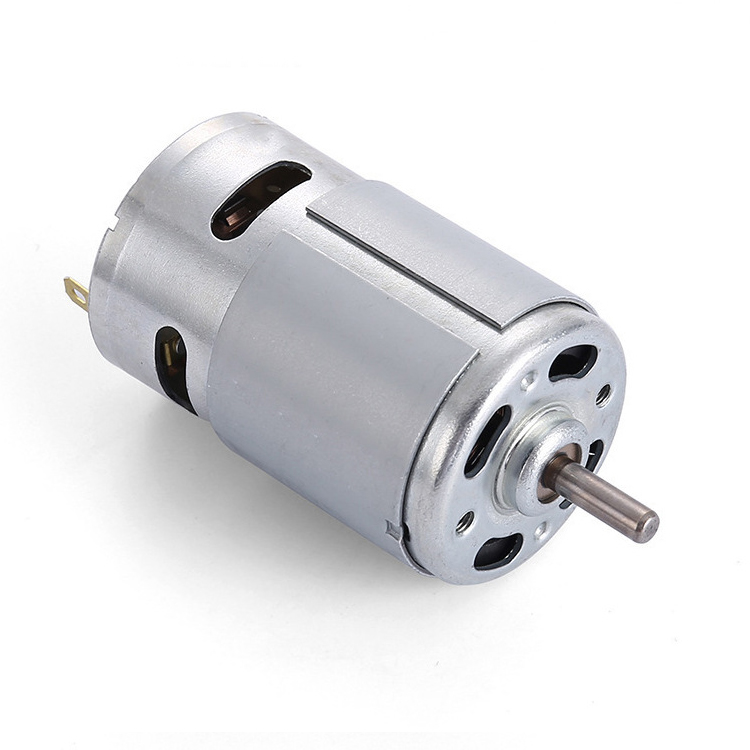

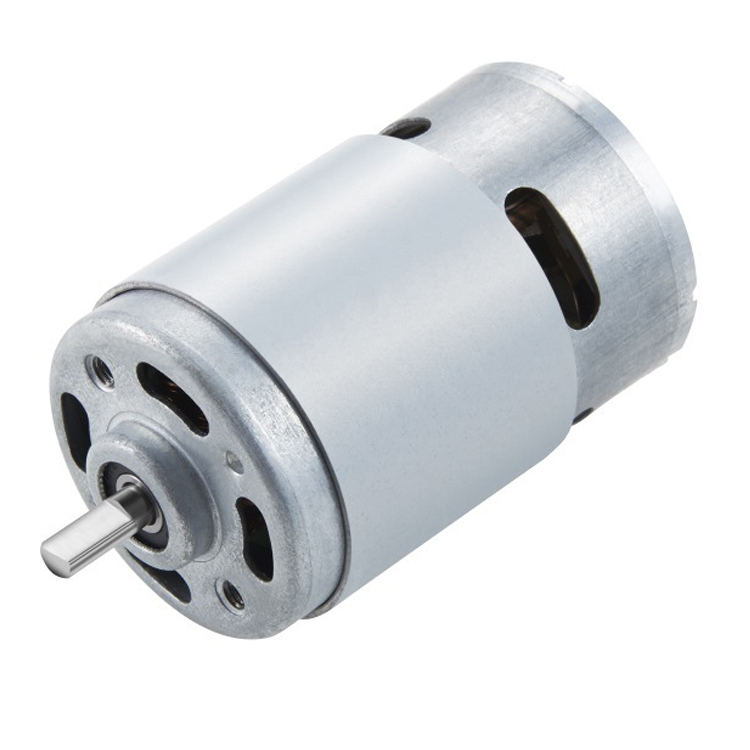

High RPM RS-555 and RS-775 DC Motor 12V 24V DC Brushed Motor
Key Features & Technical Details
- Typical Applications: Printer, Copy Machine, Sewing Machine, Water Pump, Hair Dryer, Circular Saw, String Trimmer, etc.
- High efficiency, less noise, and low current, 24V DC motor.
- Can match with 45mm planetary gearbox, or 51mm gear box.
- Shaft: 5.0mm diameter, shaft length 14.5/19.5mm.
- Mounting holes: 2-M4.0x0.7.
- Double shaft for encoder, 12ppr.
- Samples can be provided for your test.
| MODEL |
VOLTAGE |
NO LOAD |
AT MAXIMUM EFFICIENCY |
STALL |
| OPERATING RANGE |
NOMINAL |
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
OUTPUT |
TORQUE |
CURRENT |
| V |
rpm |
A |
rpm |
A |
mN.m |
g.cm |
w |
mN.m |
g.cm |
A |
| TRS-775PM |
2765 |
6.0-30.0 |
24.0 |
7600 |
0.37 |
5810 |
0.22 |
73.53 |
750 |
44.7 |
312.35 |
3186 |
8.23 |
| 4045 |
6.0-15.0 |
12.0 |
4600 |
0.60 |
3500 |
4.30 |
84.31 |
860 |
36.6 |
352.94 |
3600 |
16.1 |
What are the primary applications for the RS-555 and RS-775 DC motors?
These motors are widely used in office automation and power tools, including printers, copy machines, sewing machines, water pumps, hair dryers, circular saws, and string trimmers.
Can these brushed DC motors be customized with a gearbox?
Yes, these motors can be matched with a 45mm planetary gearbox or a 51mm gear box to fit specific speed and torque requirements.
What are the standard shaft specifications?
The standard shaft diameter is 5.0mm, with available shaft lengths of 14.5mm and 19.5mm. Additionally, double shaft options for 12ppr encoders are available.
What voltage ranges do these motors support?
The operating range varies by model. For instance, the TRS-775PM (2765) operates within 6.0V–30.0V (nominal 24V), while the TRS-775PM (4045) operates within 6.0V–15.0V (nominal 12V).
Are product samples available for performance testing?
Yes, samples can be provided upon request so you can test performance, efficiency, noise levels, and load current in your specific application environment.
