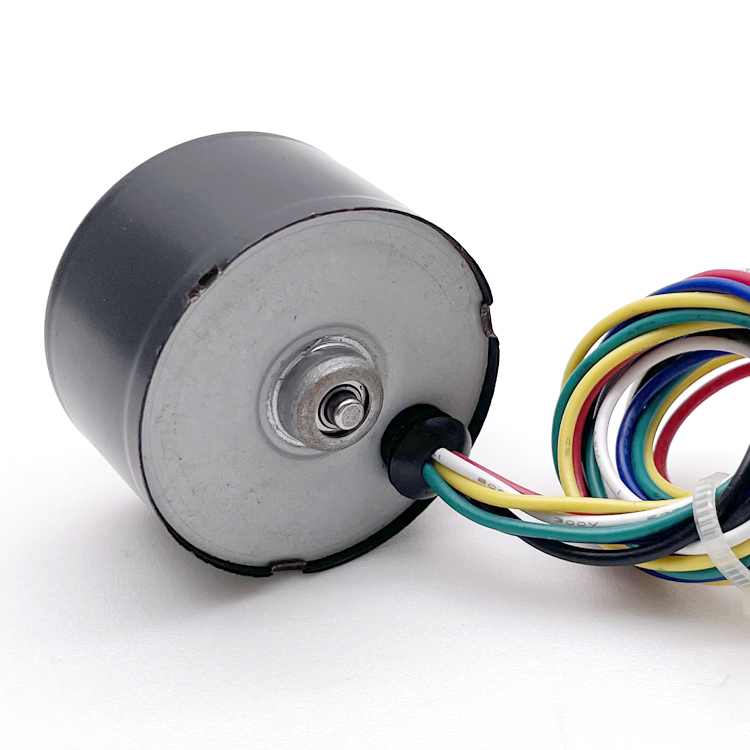

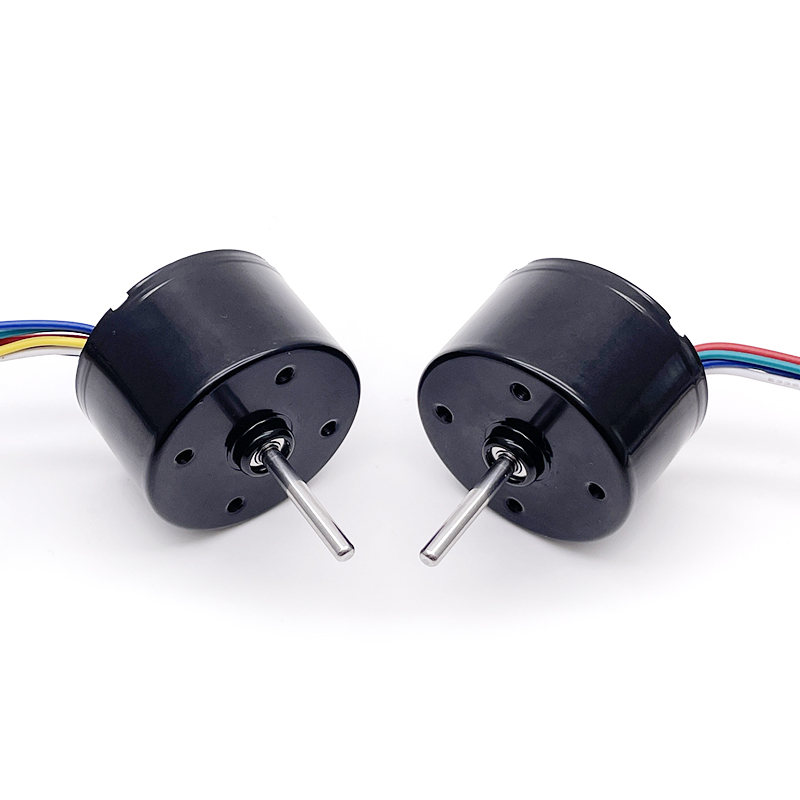

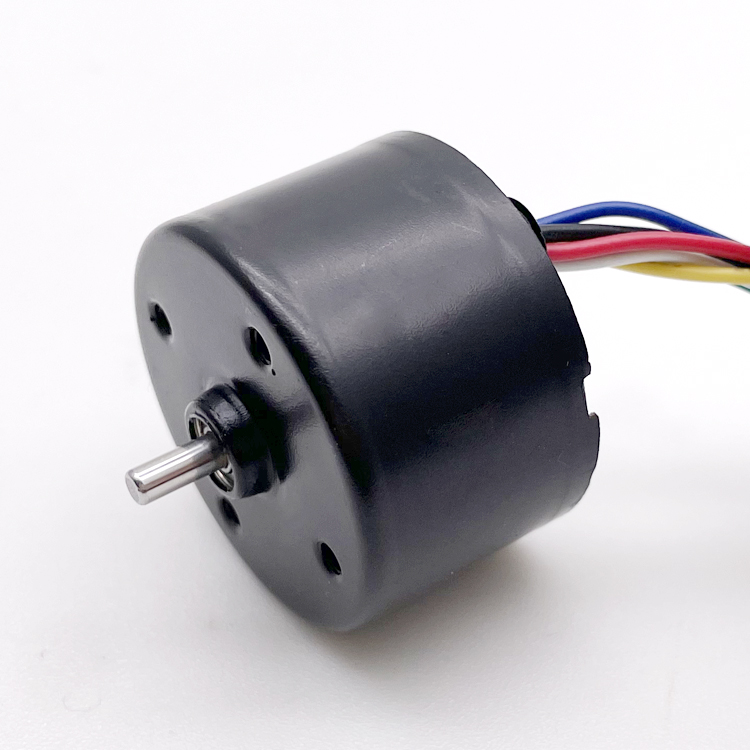

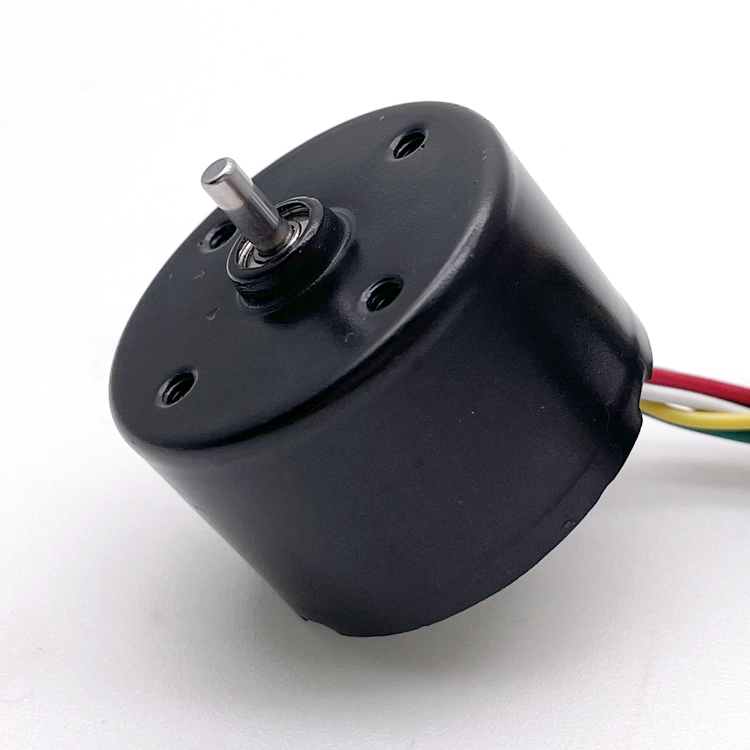

12V 24V BLDC Brushless DC Motor High Quality Efficient Electric Motor

Main Features

36mm brushless motor
Low noise, long life. Built-in drive. Power on, then work
Reverse rotation and Brake control
PWM Speed control and FG signal feedback
Can be available with planetary gearbox

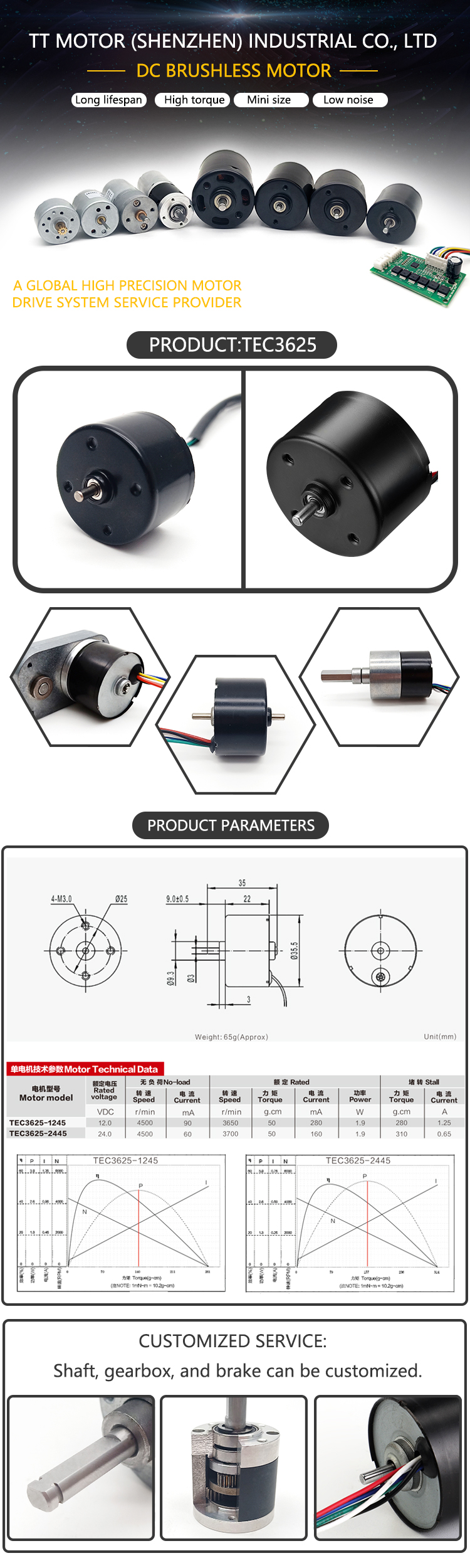

Specifications

Model: motor TEC3625
TFC3625-0630	Rated voltage: 6VDC	Rated speed: 2100r/min	Output power: 2.2W
	No-load speed: 3000r/min	Rated torque: 100g.cm	Stall torque: 340g.cm
	No-load current: 210mA	Rated current: 400mA	Stall current: 1.8A
TFC3625-1255	Rated voltage: 12VDC	Rated speed: 4600r/min	Output power: 4.6W
	No-load speed: 5500r/min	Rated torque: 84g.cm	Stall torque: 140g.cm
	No-load current: 180mA	Rated current: 800mA	Stall current: 1.6A
TFC3625-2480	Rated voltage: 24VDC	Rated speed: 5900r/min	Output power: 16.5W
	No-load speed: 8000r/min	Rated torque: 270g.cm	Stall torque: 680g.cm
	No-load current: 160mA	Rated current: 900mA	Stall current: 2.0A

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Others application
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	-
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.
