37mm Electric Bldc Motor 12v 24v Mini Dc Gear Motor

1 / 5

37mm Electric Bldc Motor 12v 24v Mini Dc Gear Motor

Send Inquiry

Product Description

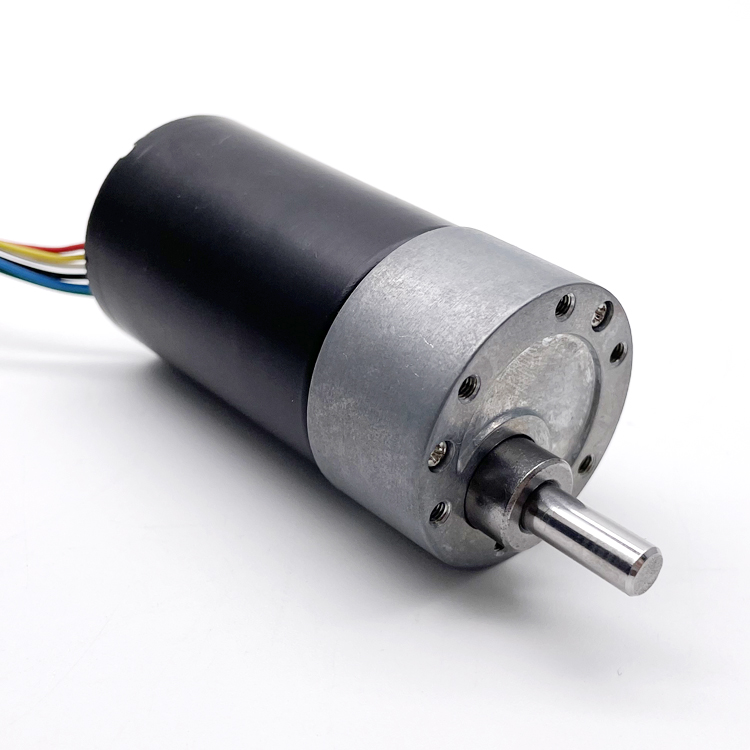

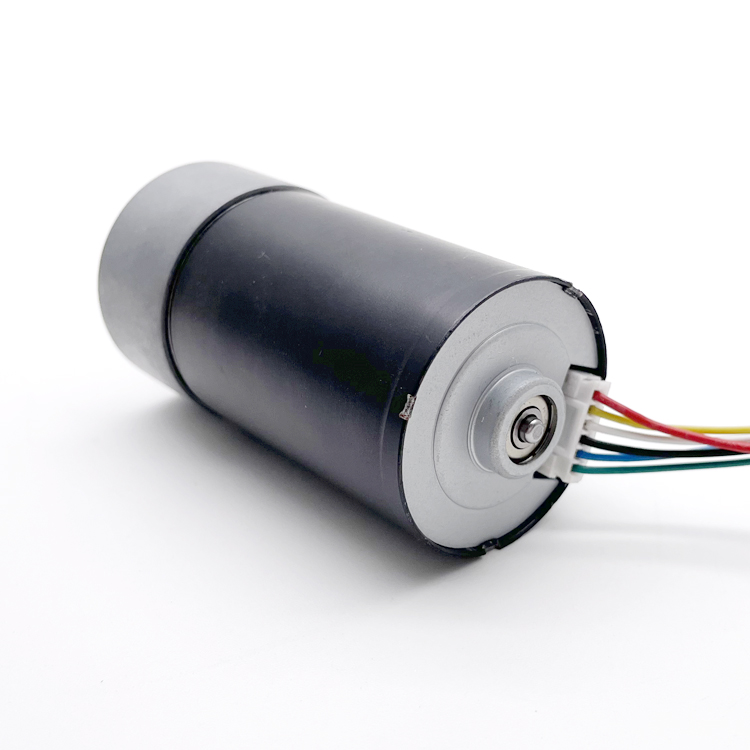

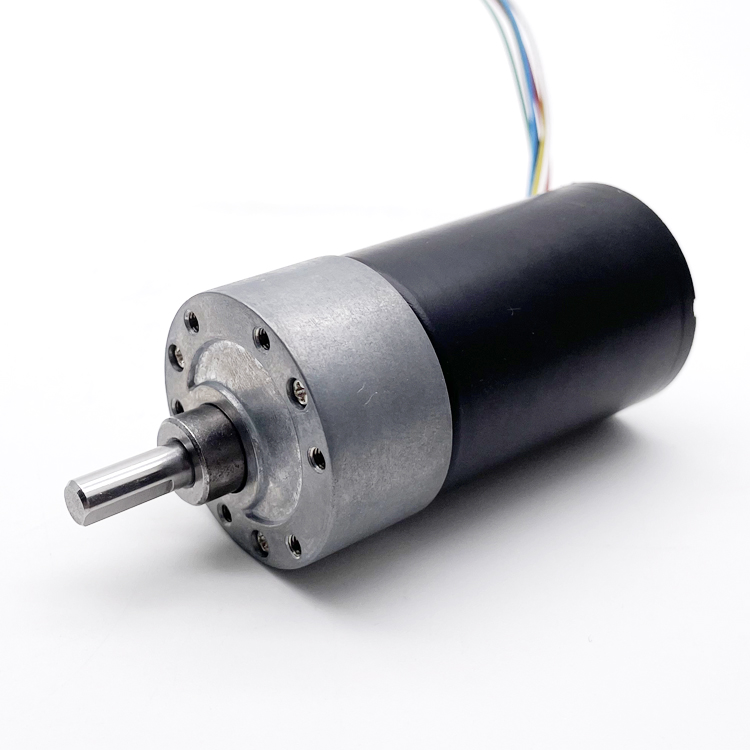

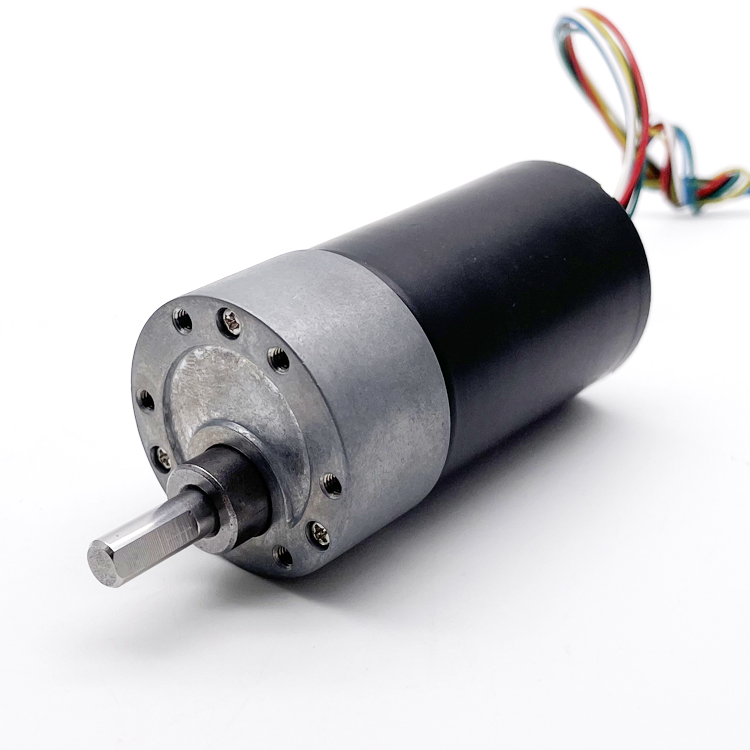

37mm Electric BLDC Motor 12V 24V Mini DC Gear Motor

⚙ Main Features

37mm spur gearbox plus TEC3650 & TEC3640 brushless motor
Small size DC gear motor with low speed and big torque
37mm gear motor provides 1.0Nm torque and high reliability
Suitable for small diameter, low noise, and big torque applications
Reduction ratio options: 6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810

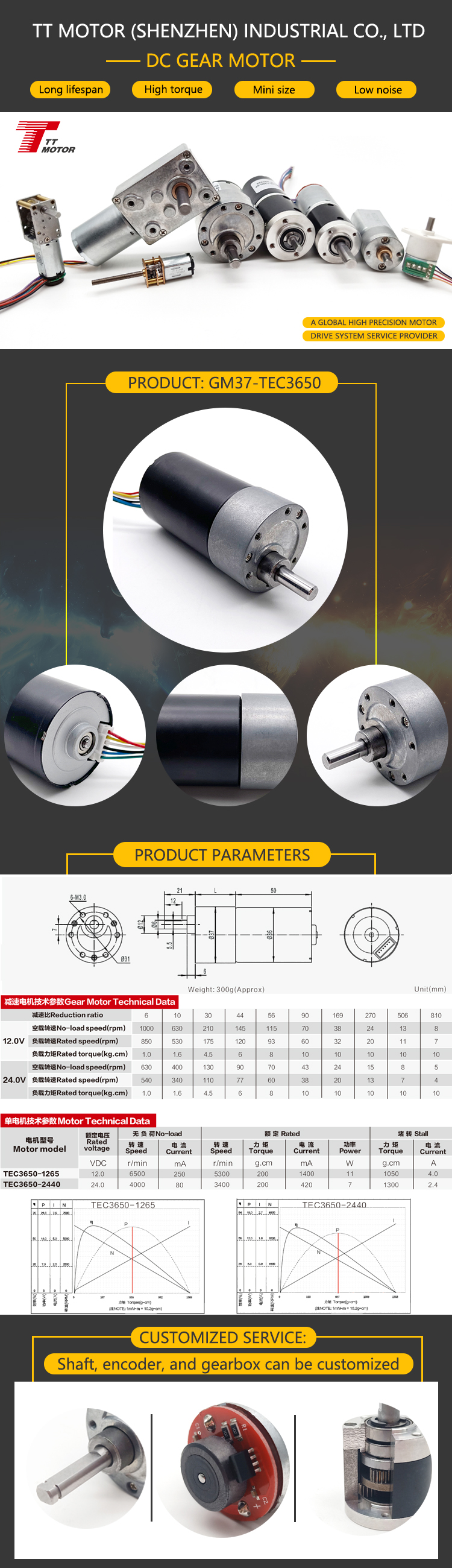

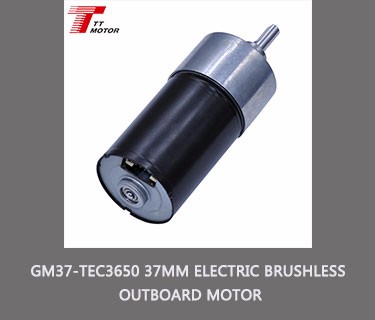

📊 Specification (Model: GM37-TEC3650)

Model Reference	Electrical Parameter	Speed Parameter	Output Capability
TEC3650-2465	Rated voltage: 24VDC	Rated speed: 5400r/min	Output power: 11.5W
	No-load speed: 6500r/min	Rated torque: 200g.cm	Stall torque: 1150g.cm
	No-load current: 200mA	Rated current: 1000mA	Stall current: 2A
TEC3650-2440	Rated voltage: 24VDC	Rated speed: 3200r/min	Output power: 6.6W
	No-load speed: 4000r/min	Rated torque: 200g.cm	Stall torque: 1000g.cm
	No-load current: 120mA	Rated current: 600mA	Stall current: 2A
TEC3650-1245	Rated voltage: 12VDC	Rated speed: 3500r/min	Output power: 8.3W
	No-load speed: 4500r/min	Rated torque: 230g.cm	Stall torque: 820g.cm
	No-load current: 150mA	Rated current: 800mA	Stall current: 2.5A

📋 GM37-TEC3650-2465-xx Gearbox Options

Parameter	6	10	30	44	56	90	169	270	506
Length (mm)	19	19	21.5	24	24	24	26.5	26.5	29
No-load speed (rpm)	1000	650	215	145	110	70	38	24	12.5
Rated speed (rpm)	830	540	180	122	95	65	34	22	11
Rated torque (kg.cm)	0.7	1.2	3.6	5.2	6.5	10	10	10	10
Max. momentary tolerance torque (kg.cm)	2	5	15	15	15	15	15	15	15

📋 GM37-TEC3650-2440-xx Gearbox Options

Parameter	6	10	30	44	56	90	169	270	506
Length (mm)	19	19	21.5	24	24	24	26.5	26.5	29
No-load speed (rpm)	620	380	130	90	70	43	23	14.5	7.5
Rated speed (rpm)	500	320	100	72	55	36	19	12.5	6.5
Rated torque (kg.cm)	0.7	1.2	3.6	5.2	6.5	10	10	10	10
Max. momentary tolerance torque (kg.cm)	2	5	15	15	15	15	15	15	15

📋 GM37-TEC3650-1245-xx Gearbox Options

Parameter	6	10	30	44	56	90	169	270	506
Length (mm)	19	19	21.5	24	24	24	26.5	26.5	29
No-load speed (rpm)	710	430	150	100	80	50	27	17	9
Rated speed (rpm)	580	350	115	80	62	39	21	13	7
Rated torque (kg.cm)	0.9	1.6	4.1	6.1	7.7	10	10	10	10
Max. momentary tolerance torque (kg.cm)	3.5	5.7	15	15	15	15	15	15	15

💡 Applications by Segment

Industry Segment	Typical Applications
Business Machines	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care	Hair Cutting, Hair Care, Massagers.
Power Tools	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical	Video, Cameras, Projectors.

🔌 Specific Product Applications

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

🔧 Other Applications Summary

Sector	Applications	Applications	Applications	Applications
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	-
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

📜 Certifications

ISO9001, SGS, National high-tech enterprises, etc.

🏭 Operations Overview

Micro motors, gear motors, and their respective parts has been the main specialty since 2000. The products are widely utilized in entertainment systems, automobiles, home and industrial appliances, tools, and many others. Our solutions are dependable and long-lasting, backed by years of development experience. Up to 98% of the output is exported worldwide.

By leveraging a hard-won reputation for honesty, dependability, and quality, we aim to continue as a pioneer in sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor, or an agent, please feel free to collaborate. We look forward to being able to work together with you in the near future.

🤝 Partner Ecosystem

Providing trusted products to global brands including NIKE, FLEXTRONICS, STANLEY, etc.

📦 Packing & Delivery

Standard packing methods are applied for export quality protection.

✈️ Shipping Time Details

DHL: 3-5 working days
UPS: 5-7 working days
TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
China Post: Depends on destination country
Sea Freight: Depends on destination country

💬 Customer Feedback

"Excellent quality, better price, good service, and on time delivery."

❓ Frequently Asked Questions

How to order?

Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

How about sample orders?

Samples are available for your testing. Please reach out for details. Once a sample fee is charged, rest assured that it will be refunded upon placing a formal order.

Which shipping ways are available?

DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight are all supported. Other delivery methods can also be accommodated if requested.

How long is the production and shipping time?

Delivery and production times depend on the specific quantity ordered. Generally, mass production takes around 15-25 working days.

What should be done if a package has missing products?

Please notify support immediately. We will confirm your order details and verify the package contents. We apologize for any inconvenience caused.

How to confirm payment?

We accept payments via T/T and PayPal. Other payment options can also be negotiated. A 30-50% deposit option is supported, with the remaining balance paid before shipping.
